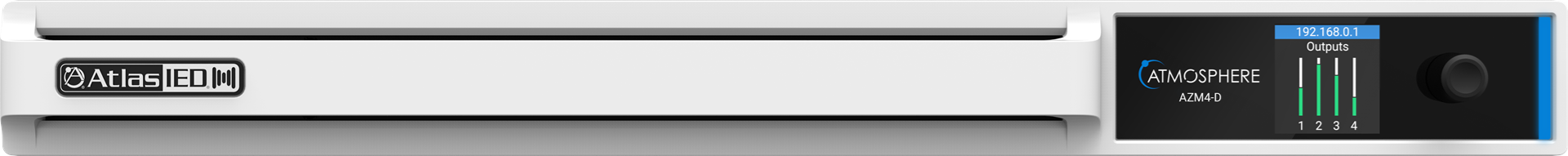

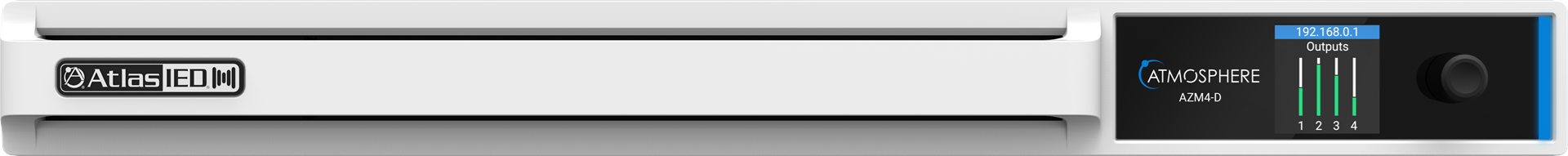

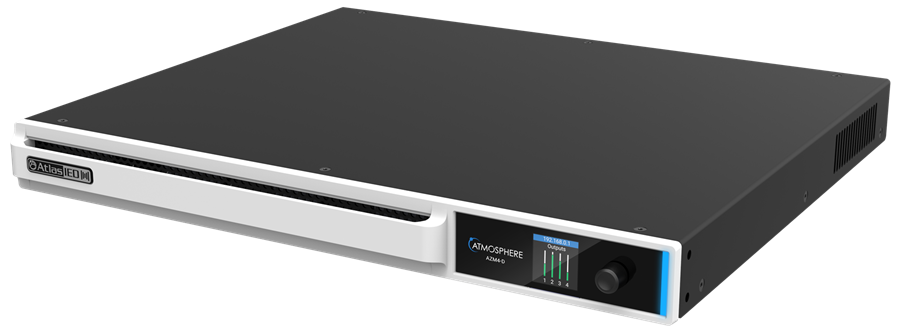

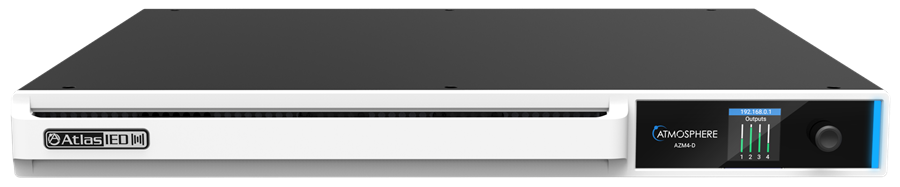

AZM4-D
Atmosphere™ 4 Zonen Audio Prozessor mit 8 (6+2) x 4 Matrix und 8x16 Dante;
Tischversion inkl. 1HE 19" Montagewinkel
Zusätzliche Audio Routes (Source, Mix, Zone "Pre-DSP", Zone "Post-DSP", Amp Monitor, Signal Generator) zu Output (x16 Dante)
Webbrowser basierende Software zur Konfiguration, sowie Bedienung (GEM) mit Backupfile Möglichkeit (Service)
WIFI, DSP, Scenes/Presets (20 bzw. 8 per front-panel), Message Player (100 audio files and 20 messages bzw. 8 per front-panel in wav), AtlasIED Speaker Presets/Library, Event Scheduler, Auto Gain, Tilter Filter & ANC Auto Noise Compensation for all zones, Sound Masking generator

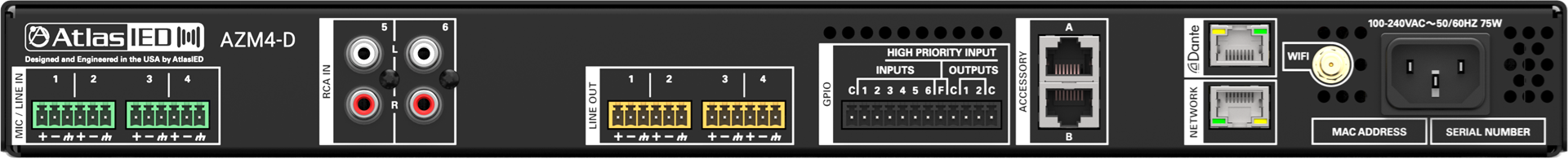

4 sym. MIC/LINE IN & 2 asym. LINE IN
2 Bedienanschlüsse für bis zu je 8 plug and play Bedienungen (max. 1 Audio per Port & 8 X-ANS bzw. 16 per AZM4/8) über eine Distanz bis zu 300m
GPIO (6 IN & 2 OUT)

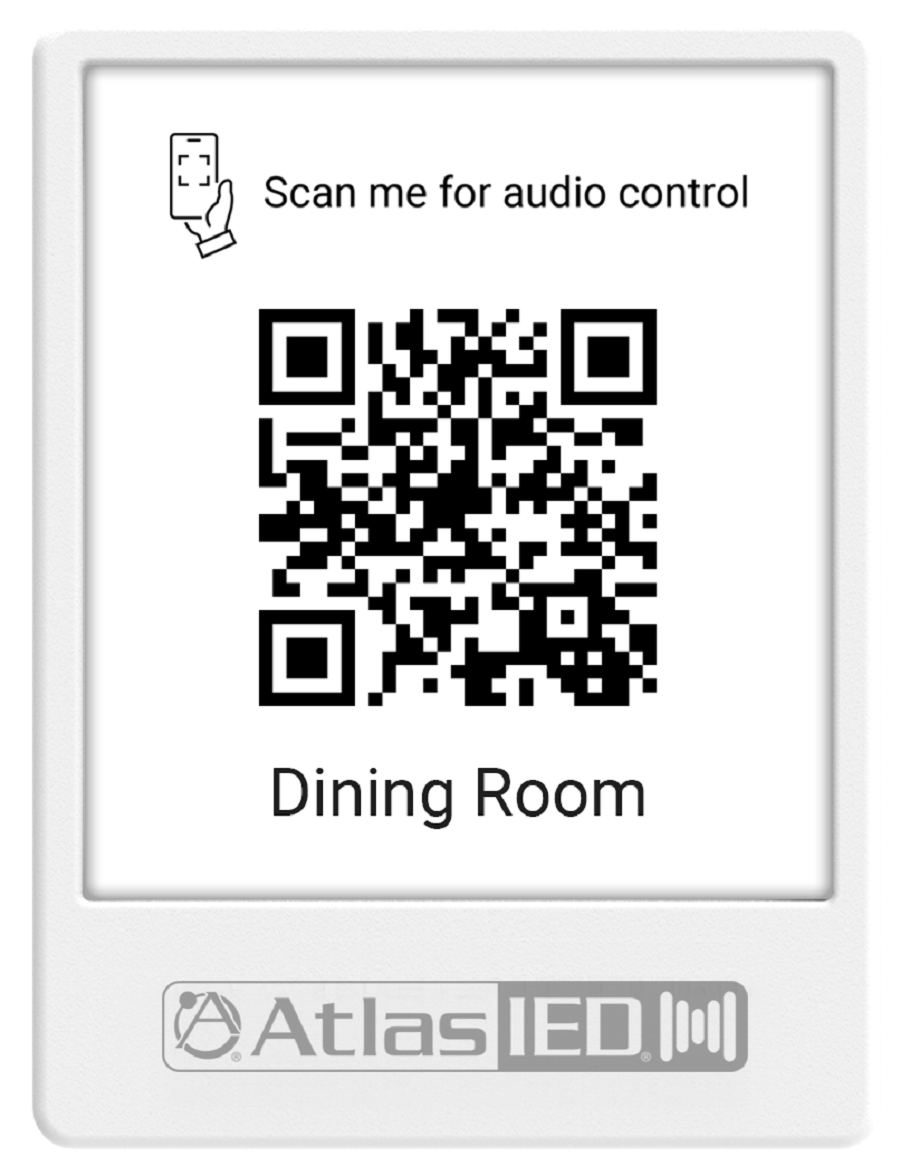

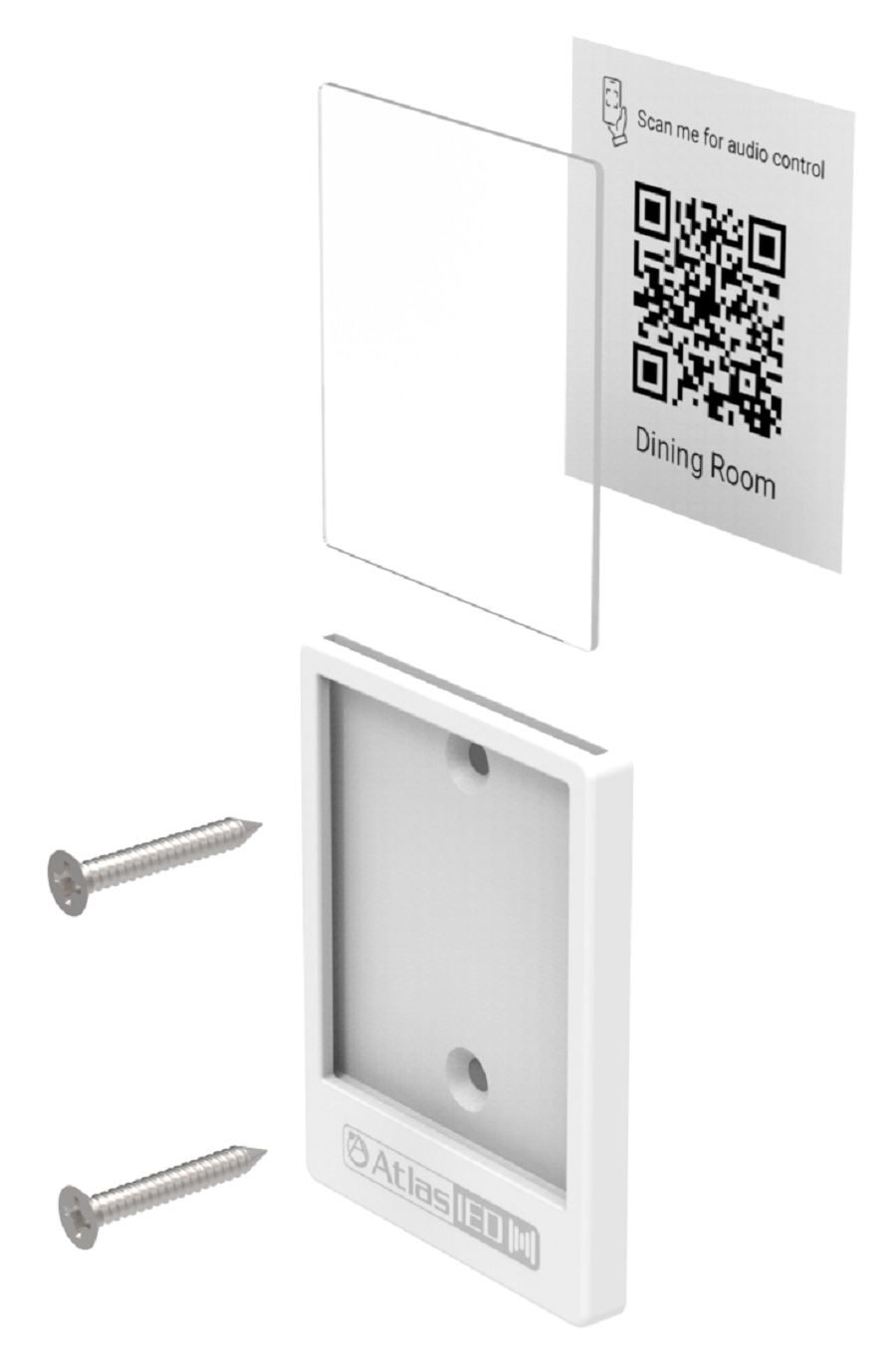

incl. 1 GEM - Virtual Wall Controller QR Code Holder
The Atmosphere AZM4-D is a 4-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. Dante networked audio provides convenient audio distribution to other Dante-enabled devices. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter™, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZMP a processing powerhouse.
The AZM4-D is compatible with all seven of the Atmosphere wall plate accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 2 accessory ports on the AZM4-D. Additionally, a zone paging station can be added as an accessory. Each port is designed to work reliably up to 1000ft.
Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZM4-D.
Control modules available for RTI, Crestron, Extron, and AMX.
FEATURES
Dante networked audio
2 accessory ports that support up to 16 controllers & sensors, and 2 audio wall plates (1 per port)
App-less virtual wall controller access via QR code or distributed URL
Bell Scheduler
Message player
Room combine and groups
Mono, stereo, and subwoofer support
Auto noise compensation
Loud Noise Detection
On board WIFI to use as an access point or connect to existing Wi-Fi network
Large library of AtlasIED speaker presets
Accessory self-heal
High Priority GPI input for integration with alarm system
Wide selection of audio DSP objects
Third Party Control
