A-XLR

XLR Remote Audioeingang;

max. 1 Audiosignal per Port!
LINE/MIC inkl 48V DC Phantompower

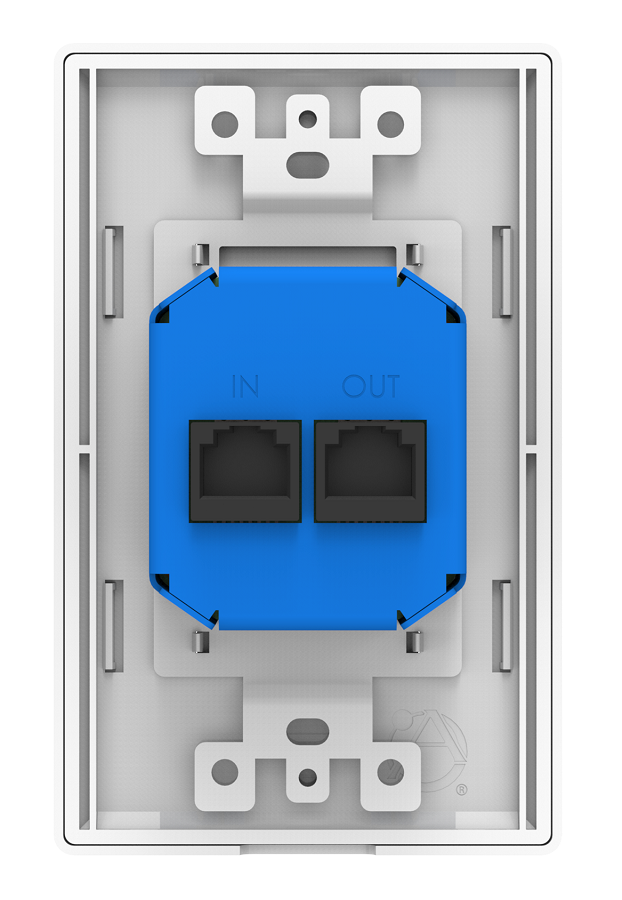

via Netzwerkkabel (seriell/parallel daisy chain) bis zu 300m per Port!

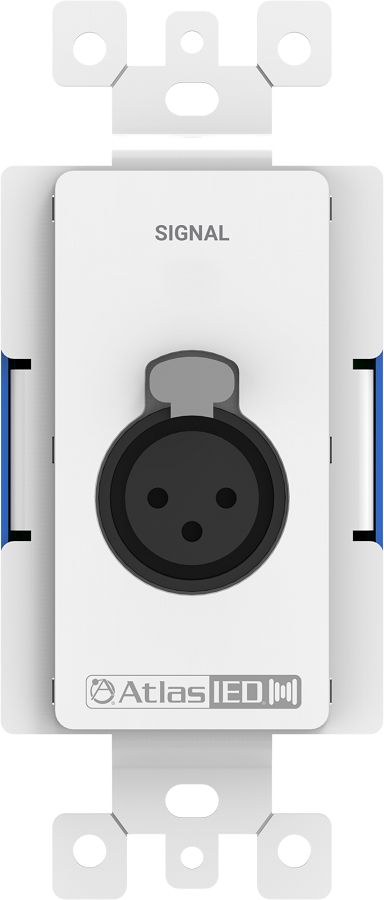

inkl. Designabdeckrahmen und 2 verdeckten Montageschrauben
DESCRIPTION

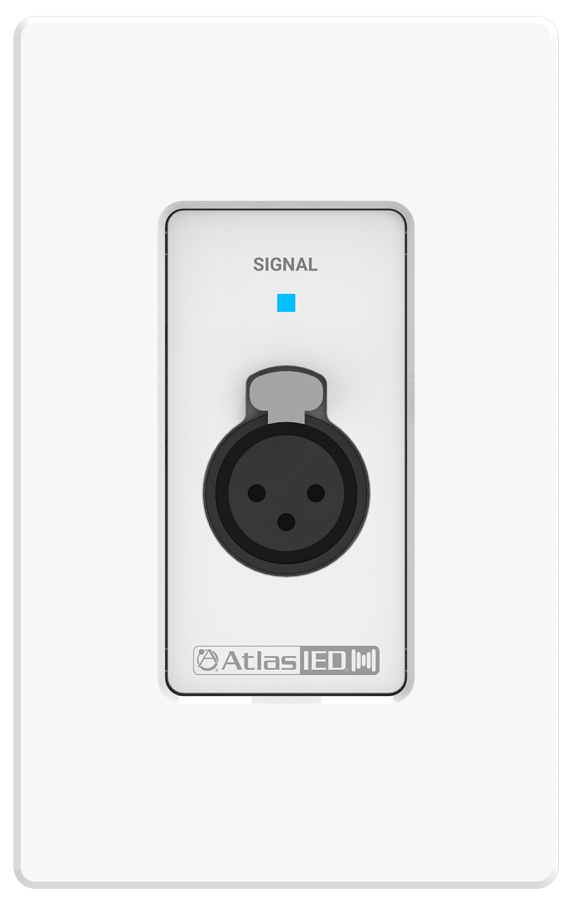

The Atmosphere A-XLR is a remote XLR audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board mic/line inputs. The AZM will automatically detect the A-XLR and dynamically assign appropriate audio settings, such as dynamics, EQ, auto gain control, and phantom power, to that input .

Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.

FEATURES

+48V phantom power (software configurable)
Digital audio return to host processor
Signal presence indicator
Neutrik brand™ connector with latch
DESCRIPTION

The Atmosphere A-XLR is a remote XLR audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board mic/line inputs. The AZM will automatically detect the A-XLR and dynamically assign appropriate audio settings, such as dynamics, EQ, auto gain control, and phantom power, to that input .

Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.

FEATURES

+48V phantom power (software configurable)
Digital audio return to host processor
Signal presence indicator
Neutrik brand™ connector with latch
