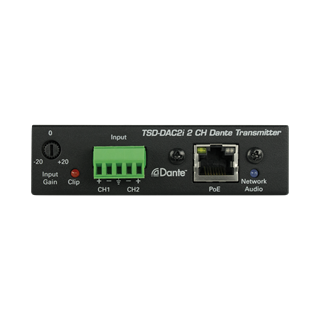

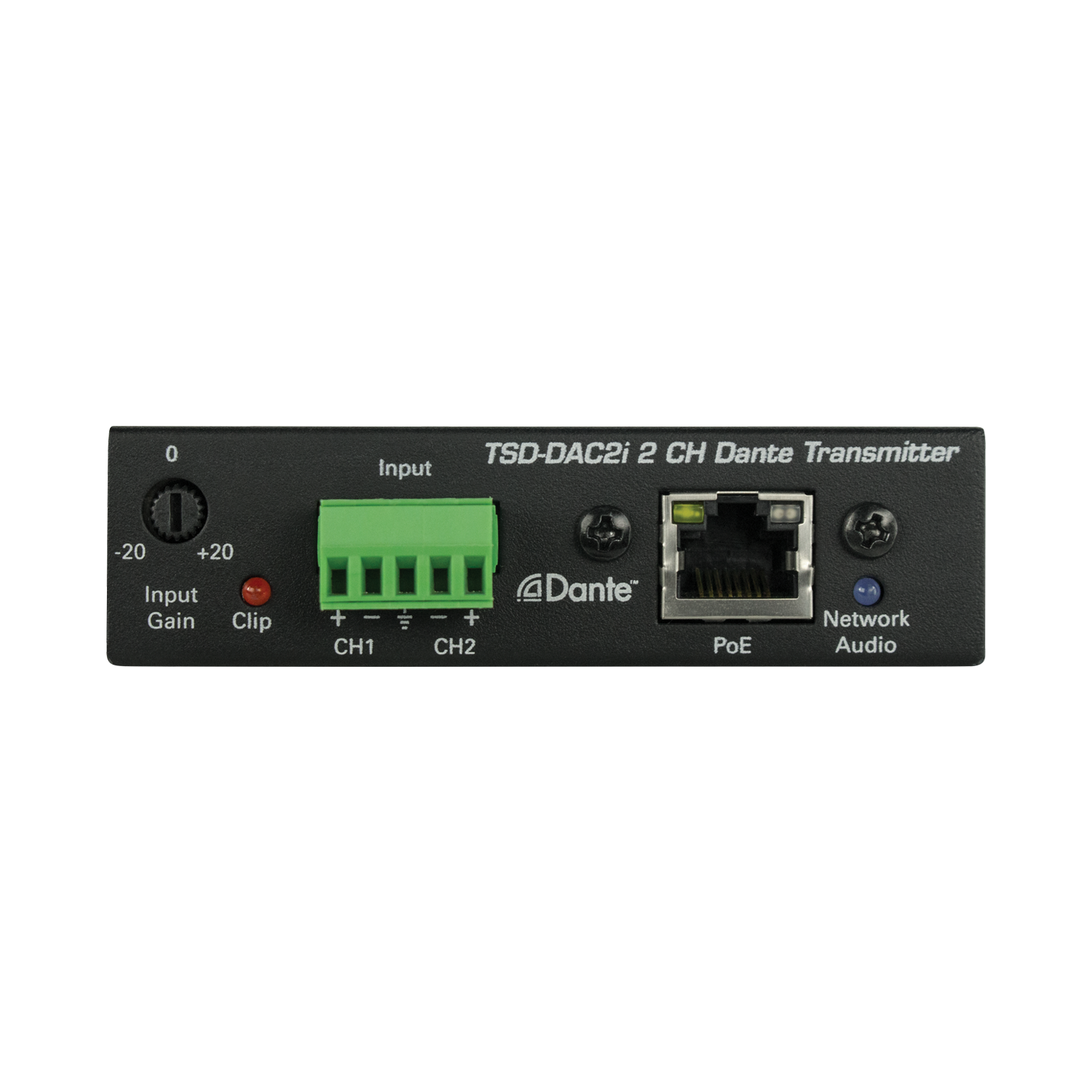

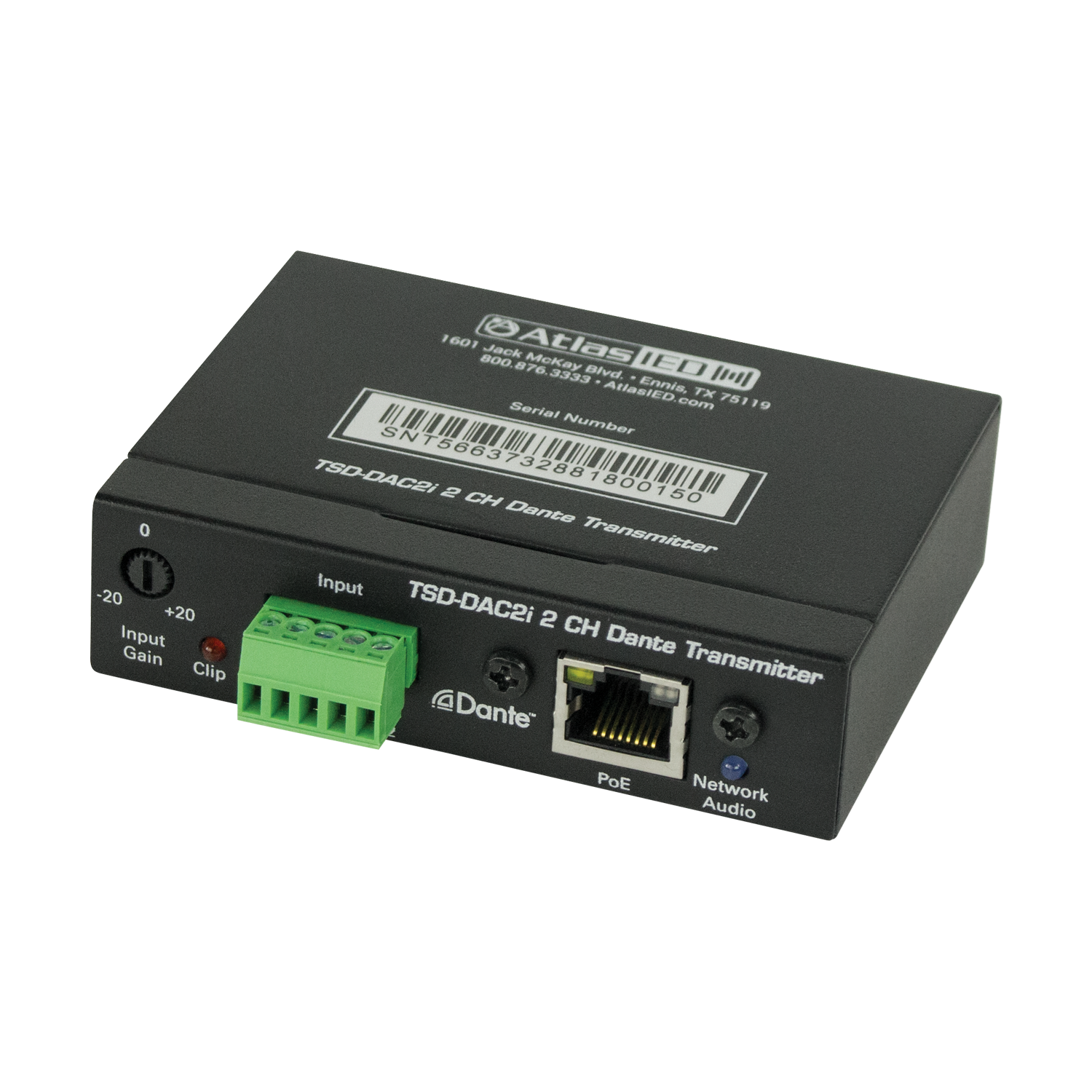

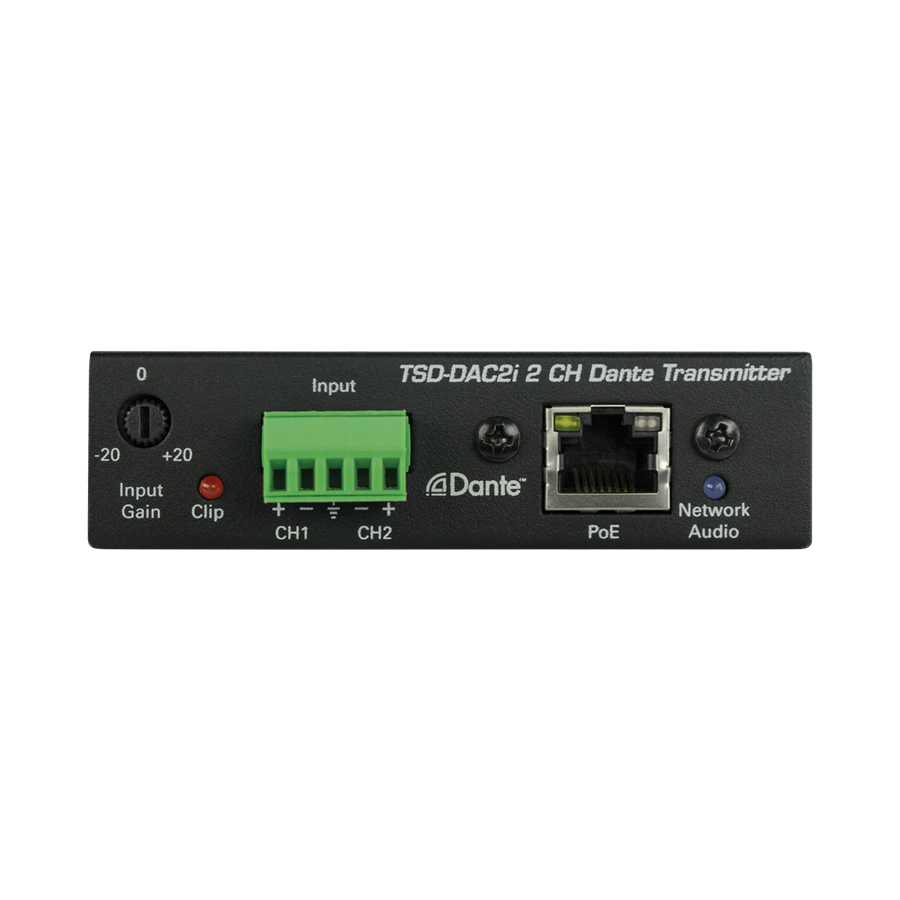

The AtlasIED TSD-DAC2i is a PoE 2-channel analog pre-amplifier that converts analog audio signals into Dante® digital audio. The TSD-DAC2i can be used for any Analog to Dante® digital audio end point but is ideally suited to be used with the AtlasIED WTSD wall mixer series. Once converted into Dante® digital audio, the audio can be transmitted over IP networks and routed in the Dante® Controller software. The TSD-DAC2i Dante® transmitter I/O module features two analog balanced line inputs with a variable gain to operate from line to mic level. An Input Clip indicator illuminates when clipping signals are present. There are indicators for Power and Network connection. The TSD-DAC2i requires no external power supply, it is powered via a network PoE port or a PoE cable power injector.
FEATURES
Dante® digital audio platform
2 CH Balanced Analog Line Input
Wide range gain adjust -20dB to +20dB
AUX, Line & Mic Levels
Input Clip Indicator
PoE Powered

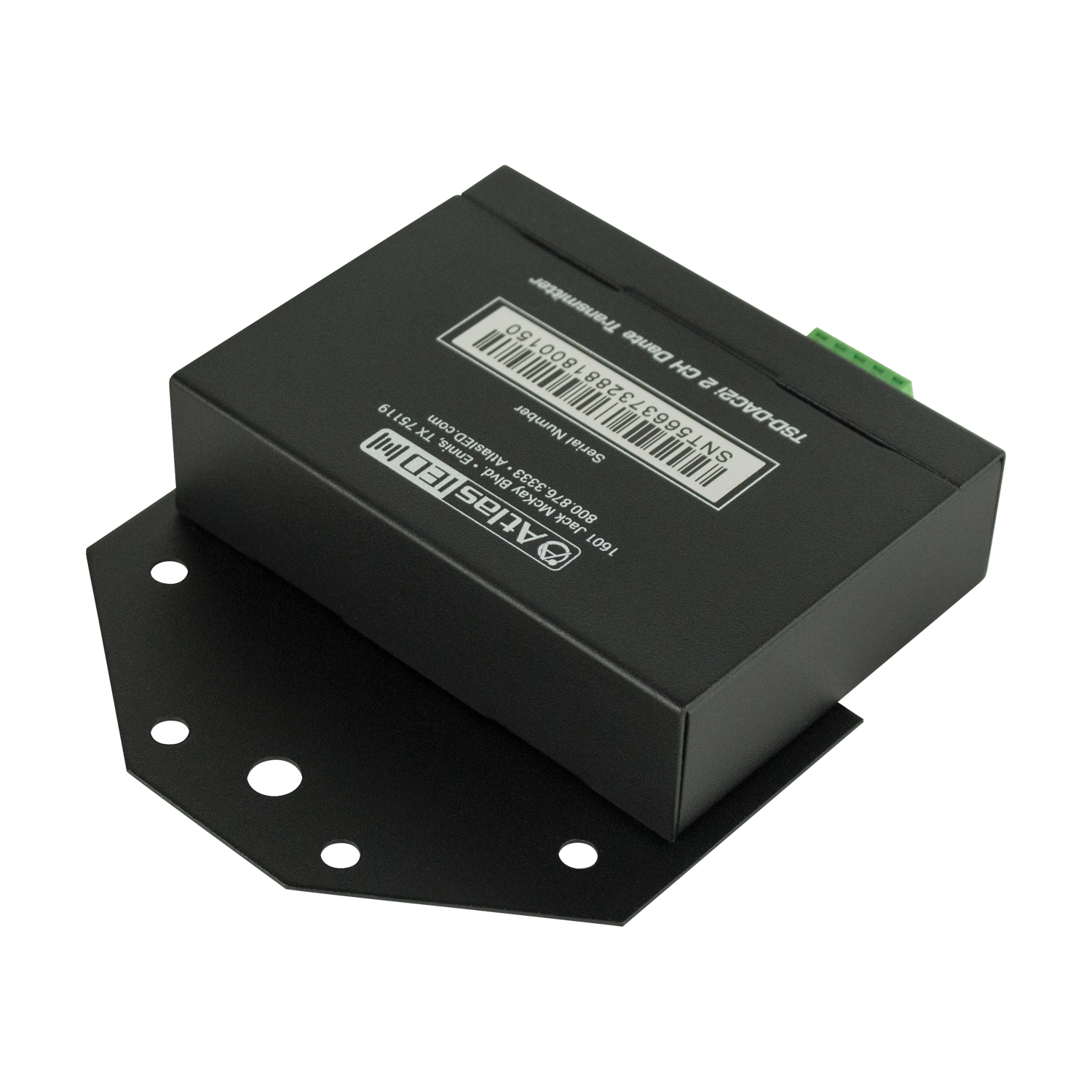

Mounting Plate
Incorporates with WTSD Wall Mixers
SPECIFICATIONS
Network Interface Single RJ-45
Input impedance 15kΩ (Analog)
Frequency Response 20Hz - 20kHz (+/- 2dB)
THD .06% @ 1kHz
Signal to Noise Ratio 95dB @ 1kHz (A Weighted)
Dynamic Range 100dB (-60dBFS A Weighted)
Power Source PoE (52V 36mA)
Power Consumption 1.9W
Height 1" (25mm)
Width 3.6" (93mm)
Depth 3.17" (81mm)
Weight .44 lbs (0.20kg)
Shipping Weight .7 lbs (0.32kg)
