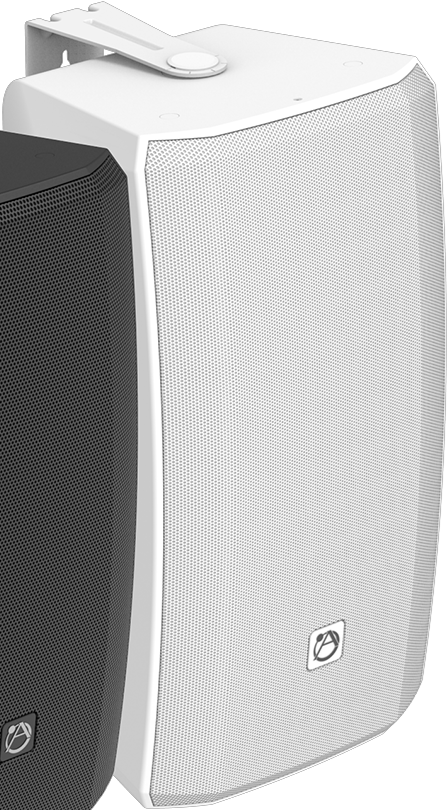

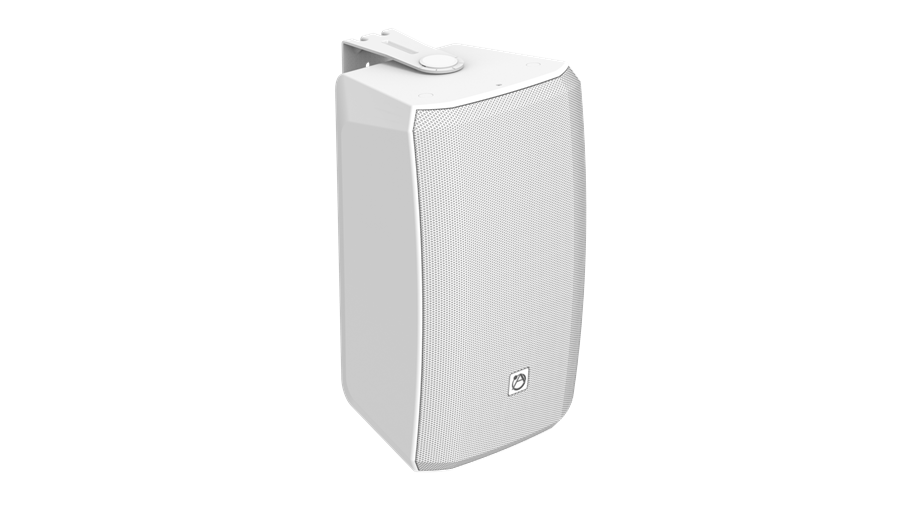

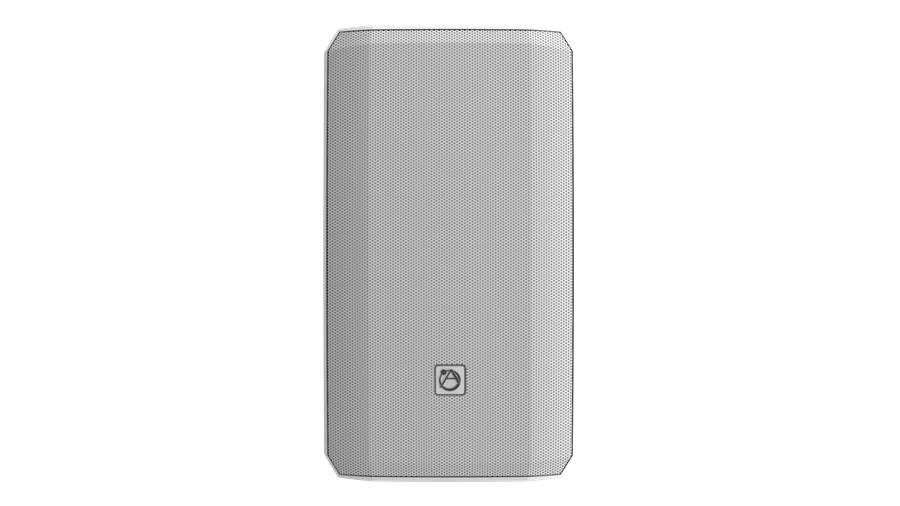

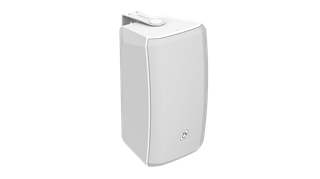

AS-8T-W

8" 2-Weg Aufbaulautsprecher wetterfest IP55 mit 60 W | 100 V / 180 W | 8 Ohm, weiss;

Leistung: 60/30/15/7.5 Watt | 100Volt (180 Watt | 8 Ohm)
Abstrahlwinkel: 100°x90° | Schutzklasse: Wetterfest IP55 | UV Resistent
inkl. Halterung (U-Bügel)
Farbe: Weiss, ähnlich RAL 9016 (auch als Standard Schwarz oder RAL/NCS Farbton erhältlich!)
DESCRIPTION
The AtlasIED AS-8T is a two-way compact Surface-Mount weather resistant loudspeaker boasting an exceptional performance-to-size ratio for demanding foreground & background applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

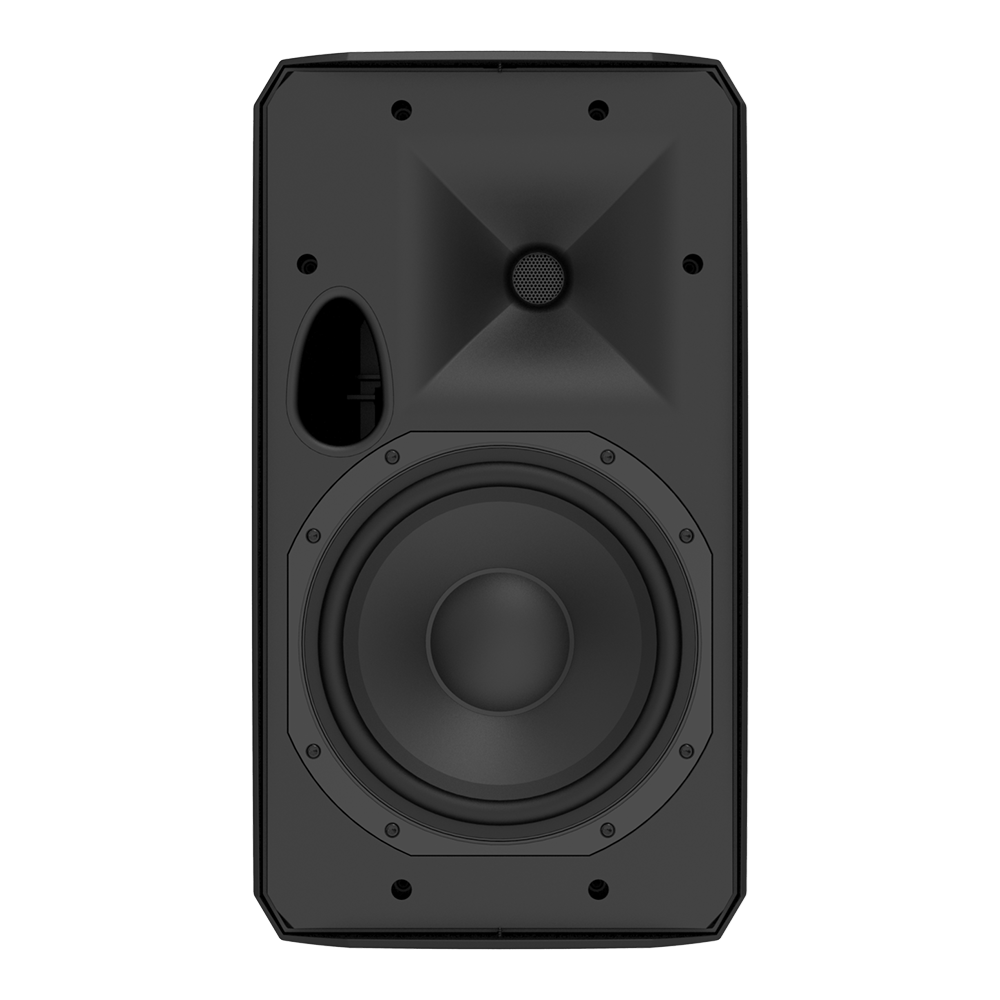

Featuring a high excursion, weather treated 8" woofer, seamlessly transitioning to a 1" exit compression driver, the AS-8T delivers a consistent and accurate broadband frequency response, both on and off axis.

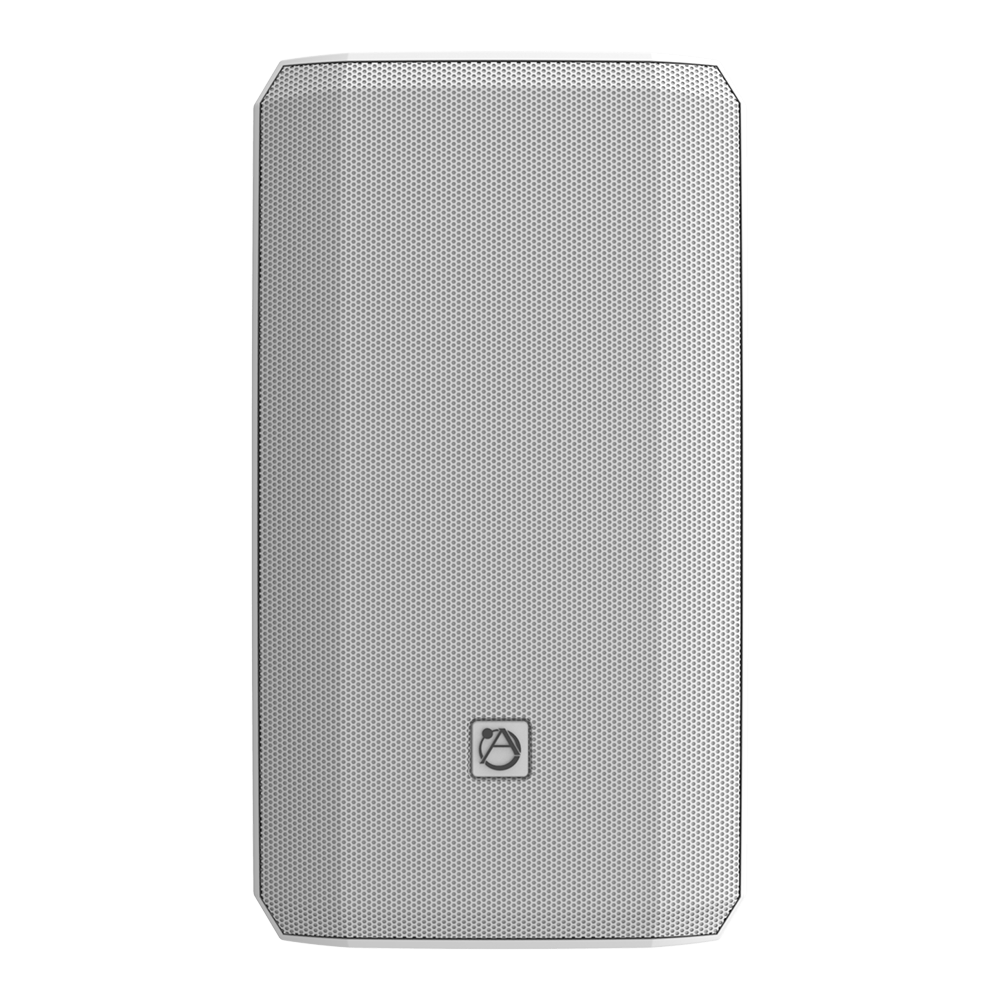

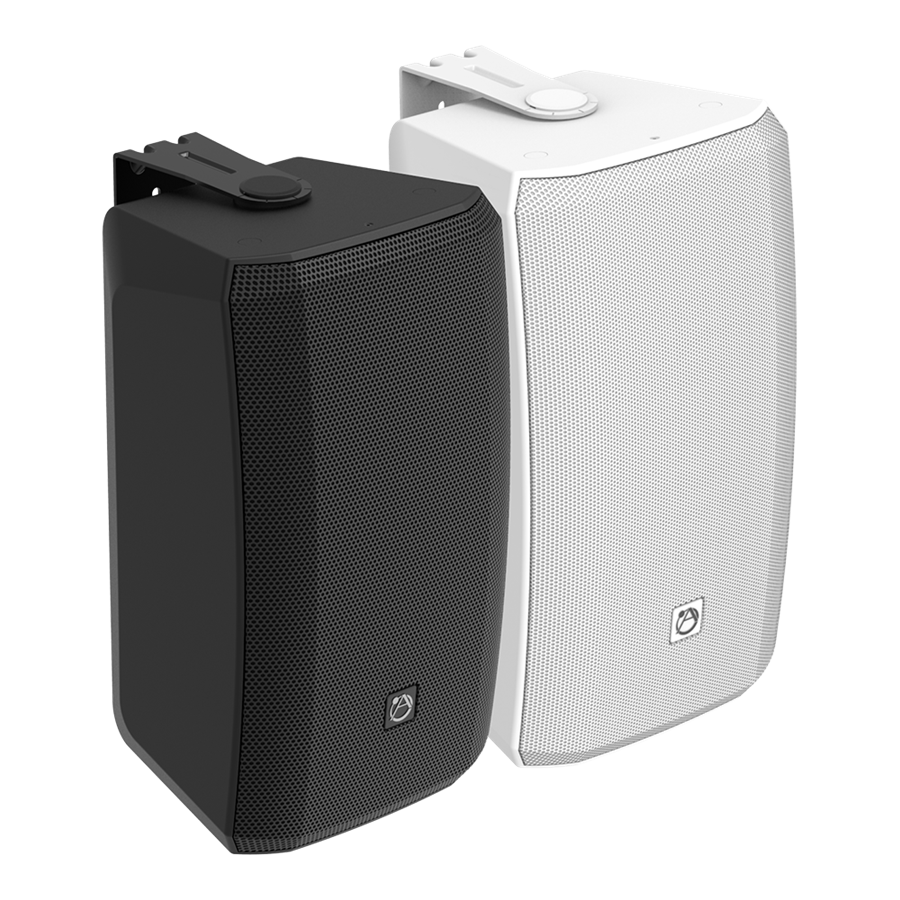

Available in textured black or white, the outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

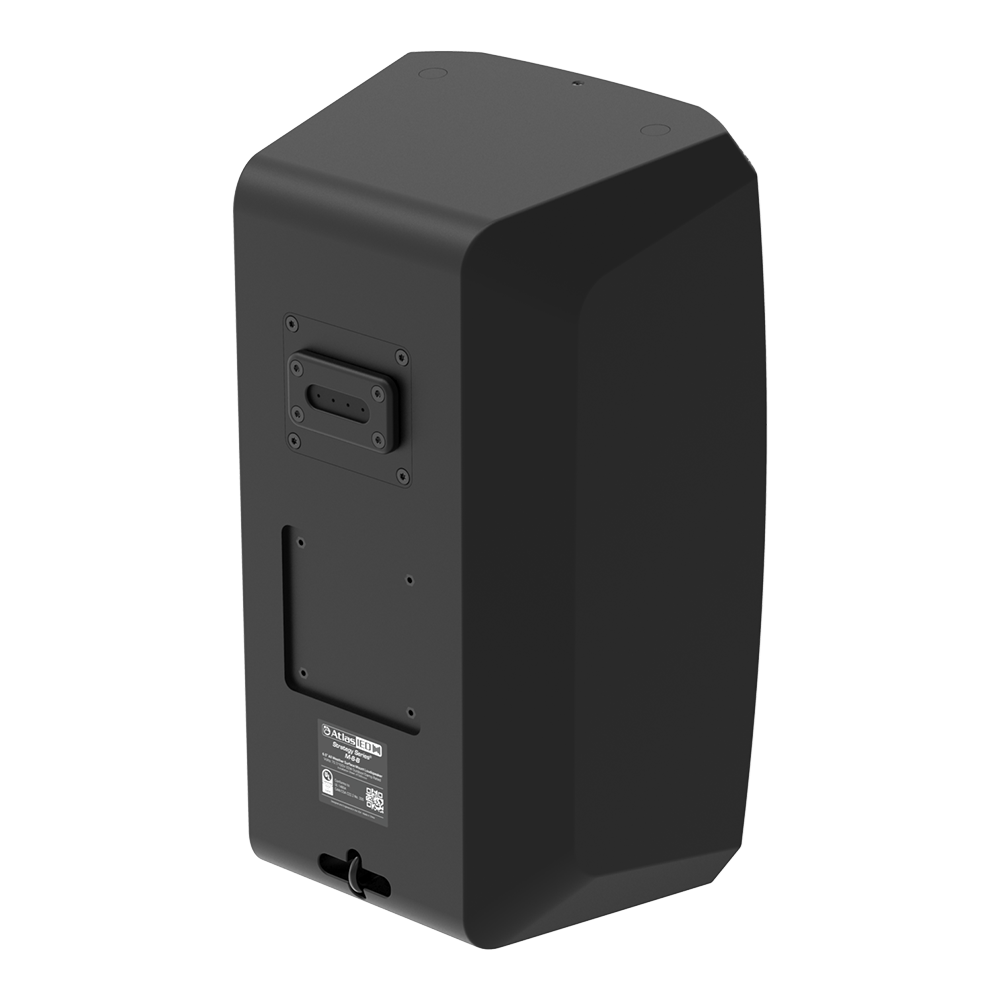

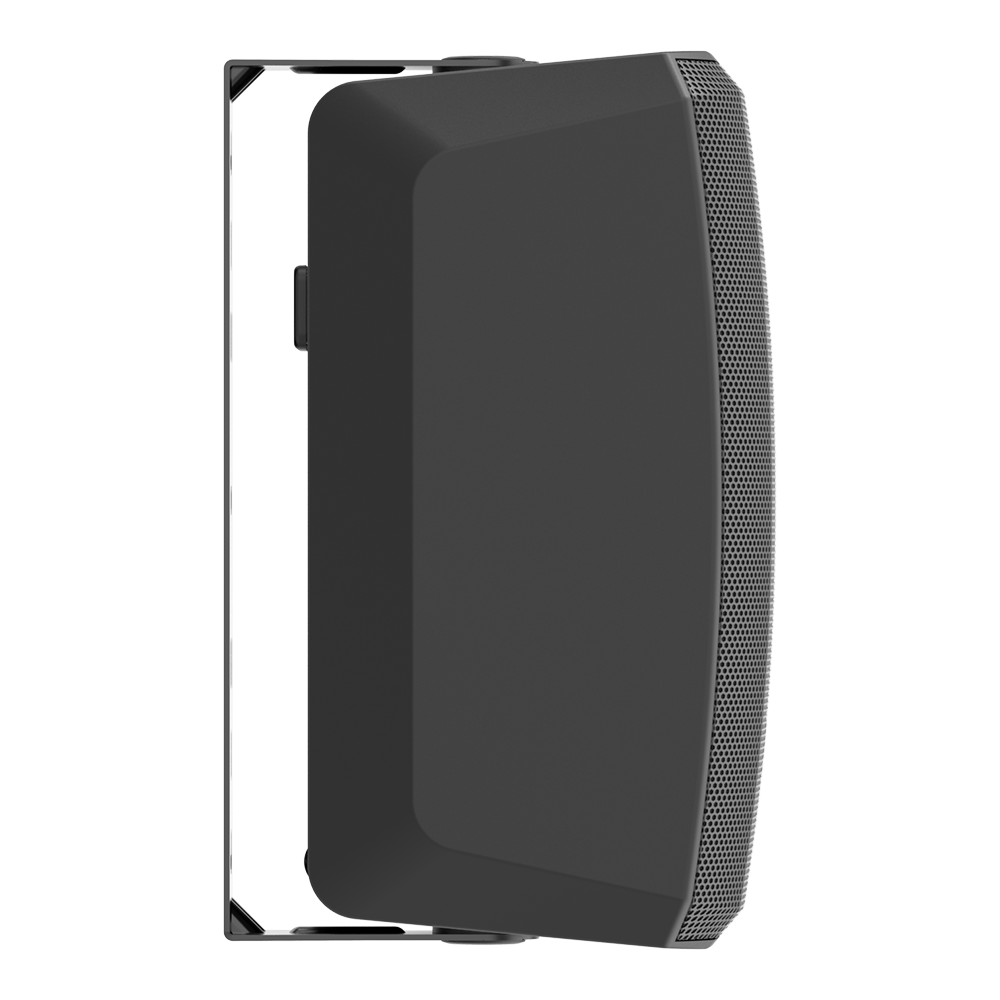

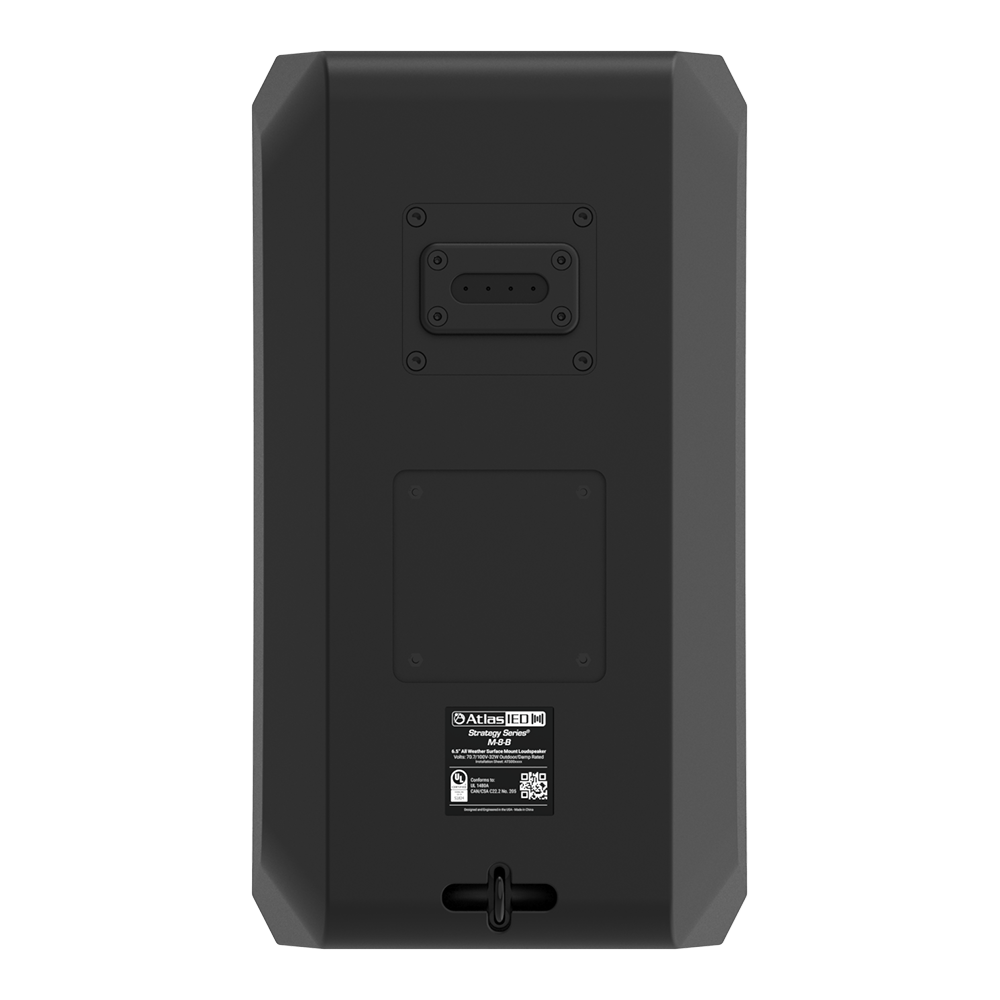

Safe and effective Installation of the AS-8T is made simple by way of the included slip free yoke mount, optional universal mount, or compatibility with 3rd party VESA mounts.

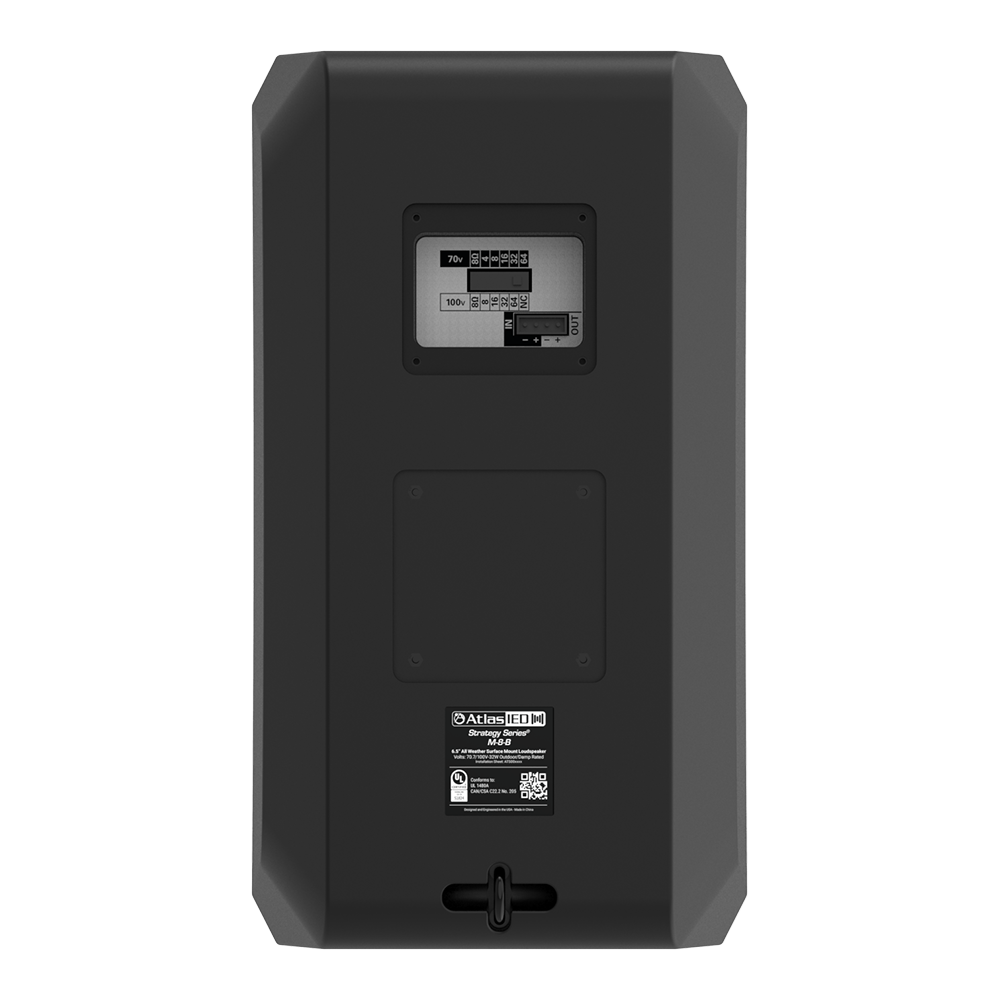

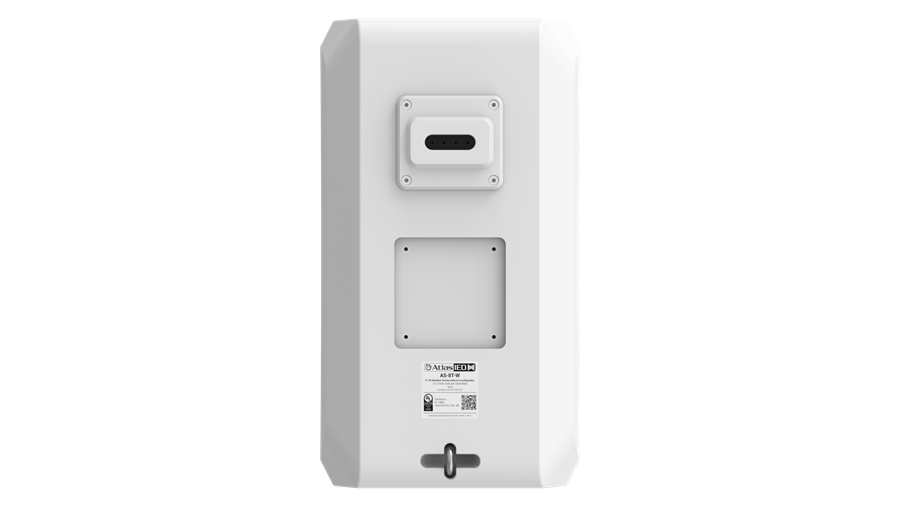

Equipped with a low insertion loss 60W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

The AS-8T has been sonically matched with the wider range of AS Series models, this allows consistency in installations where there is a mix of products used.

For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.

FEATURES
Minimalistic and clean industrial design for sensitive architectural
constraints
Effective coverage for systems with space limitations
Extremely consistent horizontal off axis performance
Ultra-low insertion loss 60W transformer for dynamic performance
in distributed systems
High impact ABS enclosure with UV inhibitor
IP55 & UL1480A rated
Slip-Free yoke mount supplied. Optional pan and tilt bracket.
Compatible with VESA™ mounts
Advanced tunings available via AtlasIED Atmosphere DSP platform

SPECIFICATIONS
Type Two-Way, Full Range, Surface Mount Loudspeaker
Frequency Range (-10dB) 49Hz-20kHz
Frequency Response (+/- 3dB) 70Hz-18kHz
Nominal Coverage Angle (HxV -6dB) 100° x 90°
POWER HANDLING
Average 180W
Programme 360W
Peak 720W
Recommended Amplifier Power 360W @ 8 Ohms
Nominal Impedance 8 Ohms (Min 8.1 Ohms)
RATED MAXIMUM SPL
Average 113dB
Peak 119dBV
With Max. Transformer Tap - Average 108dB
Transformer Taps- Via Slide Selector Switch 60W, 30W, 15W, 7.5W,( 3.8W 70V) & Low Z operation
Directivity Index (DB) 8.2
